Flow Process Station (1000 lph)
Product Image

  • Differential pressure transmitter for flow measurement
  • Electro pneumatic converter to control the control valve
  • Industrial type pneumatic control valve to regulate the flow rate of water

Level Process Station (700 mm)
Product Image

  • Capacitive type Level transmitter for Level measurement
  • Electro pneumatic converter to control the control valve
  • Pneumatic control valve to regulate the flow rate of water

Pressure Process Station (100 psi)
Product Image

  • High accuracy pressure transmitter
  • Highly sensitive electro pneumatic converter to control the control valve
  • Industrial type pneumatic control valve to regulate the flow rate of water

Temperature Process Station (1000°C)
Product Image

  • Industrial furnace used as a heat source
  • Industrial standard K type thermocouple to sense the furnace temperature

Flow Process Control Loop
Product Image

It is well arranged on Frame work consisting of one DPT Transmitter (0-157.5 inch Wc), Control Valve, Electro Pneumatic Converter, 50-500 lph Rotameter, Orifice plate, Storage tank ...

Level Process Control Loop
Product Image

The model is especially designed to understand the working of Level Process Controller. It consists of one Capacitance level transmitter (300mm), Control Valve (Equal %), Electro ...

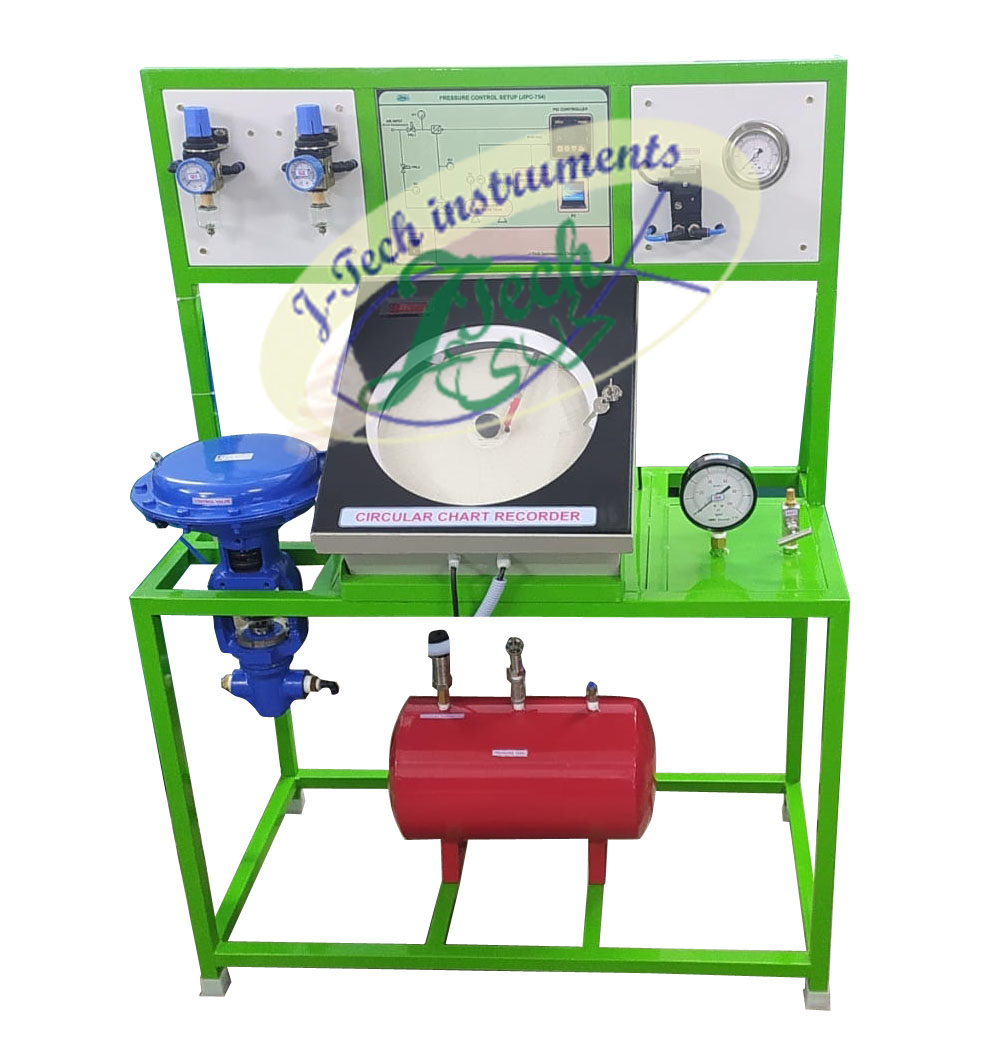

Pressure Process Control Loop
Product Image

The Pressure Process experimental setup is an Industrial model miniature version and occupies less space. It consisting of Pressure Transmitter, Control Valve,

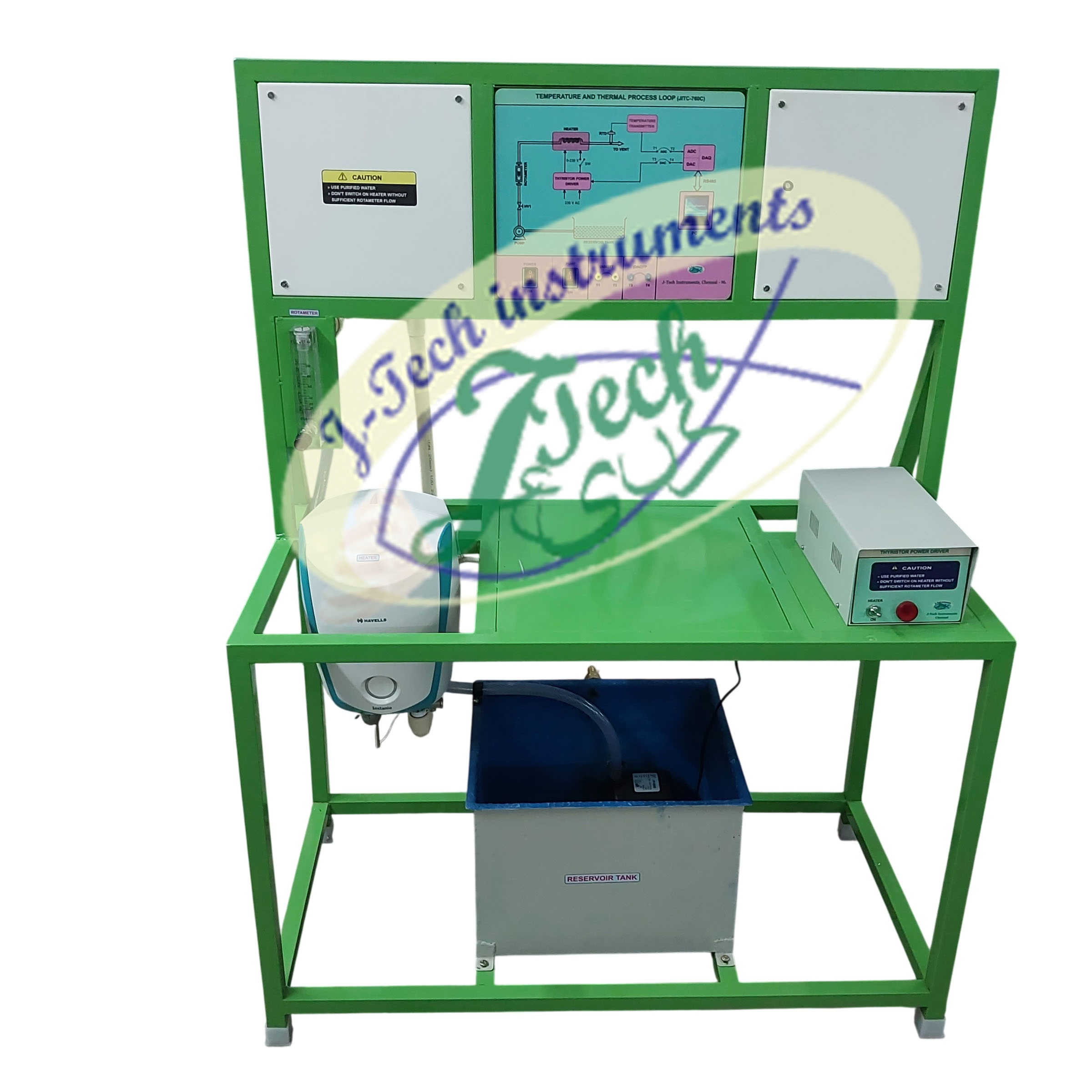

Temperature Process Control Loop
Product Image

Temperature Process Control Trainer is one of the most advanced industrial prototypes learning equipment designed and fabricated as per Latest Technology. It consists of Temperature Transmitter.

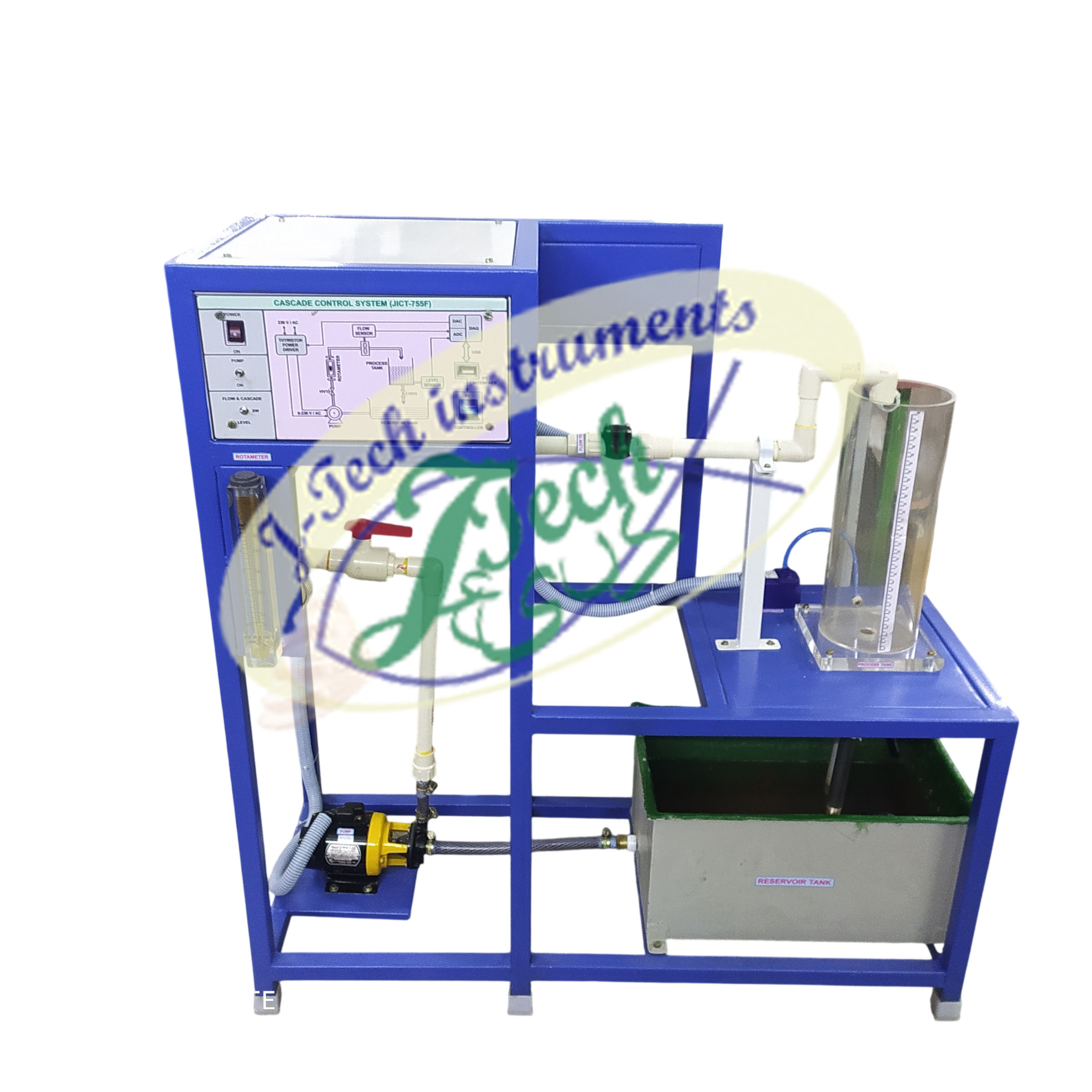

Cascade Control Trainer
Product Image

  • DPT for flow measurement
  • Level transmitter to sense the tank level
  • Electro pneumatic converter to control the control valve

Pressure Ratio Control Trainer
Product Image

  • Pressure transmitter to sense the tank pressure
  • Pneumatic control valve (Equal %) to regulate the flow rate of water
  • Electro pneumatic converter to control the control valve

Level Ratio Control Trainer
Product Image

  • Level transmitter to sense the tank level
  • Pneumatic control valve (Equal %) to regulate the flow rate of water
  • Electro pneumatic converter to control the control valve

Flow Ratio Control Loop
Product Image

  • Differential pressure transmitter for flow measurement
  • Turbine type flow transmitter to sense the ratio path

Split Range Control Trainer (Level)
Product Image

  • Level transmitter to sense the tank level
  • Electro pneumatic converter to control the control valve

Temperature and Level Control Loop
Product Image

  • Level transmitter to sense the tank level
  • Electro pneumatic converter to control the control valve

Feed Forward Control System (Level, Flow, Cascade, Feed Forward)
Product Image

  • Differential pressure transmitter for flow measurement.
  • Level transmitter to sense the tank level
  • Electro pneumatic converter to control the control valve

Multi process Control System (Ratio / Cascade / Feed forward)
Product Image

  • SS Orifice with differential pressure transmitter
  • High accuracy level transmitter
  • Industrial type pneumatic control valve
